Instructions

HIGH ACCURACY

The O-Tags® system provides a single tool solution which installs commonly used 3/4" Brass Tags with high accuracy at record time.

AT RECORD TIME

LESS EQUIPMENT  |  MORE EFFICIENT

01

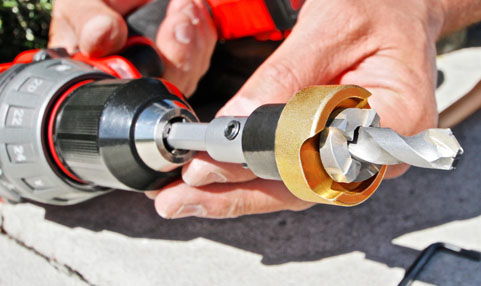

Secure Drill Tap on your Rotary Hammer Drill.

*Optional

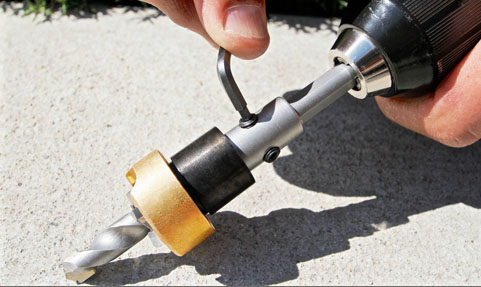

If necessary, adjust drill bit and stop collar using the O-TAGS® U-Shaped Allen Wrench.

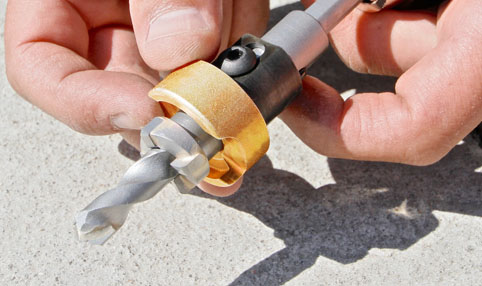

Stop Collar Adjustment for Counterbore Depth

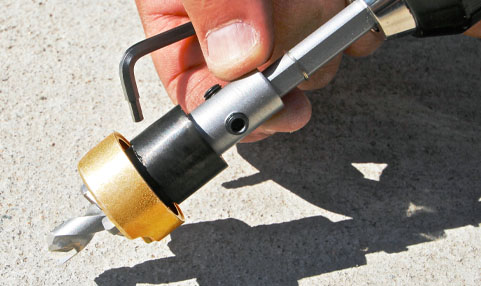

Drill Bit Adjustment for Drill Pilot Depth

01.a

01.b

02

Maintaining 90° angle, drill countersunk hole over your monument mark.

02.a

02.b

03

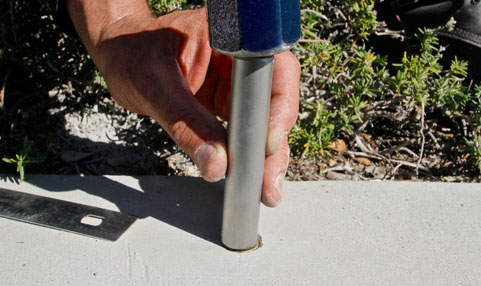

Place O-TAGS® Pre-Cut Lead Anchor in countersunk hole. Using Compression Bar and hammer, expand Lead Anchor inside hole.

03.a

03.b

Place your 3/4” Brass Tag over expanded Lead Anchor.

04

04.a

04.b

05

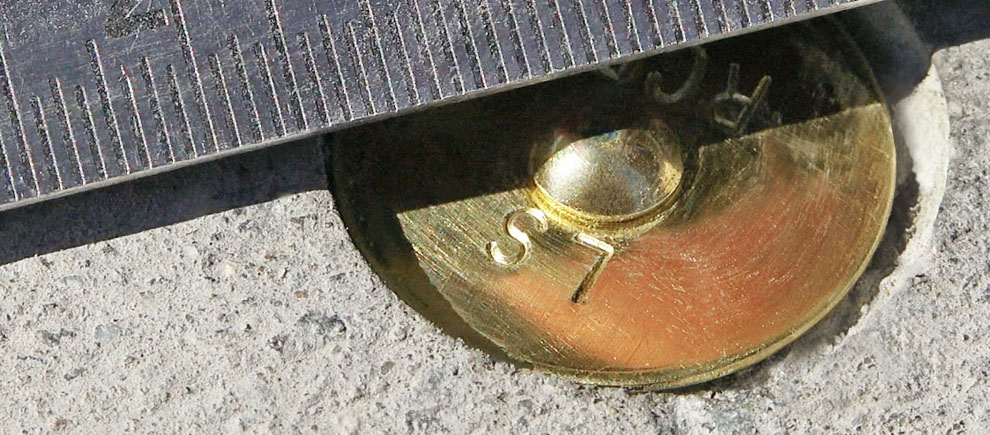

Insert brass nail in the center of your 3/4” Brass Tag and finish using Compression Bar.

05.a

05.b

< MINUTE
